All-in-One Installation Controller – Integrated, Durable, Easy-to-Use

Shandong Jintian‘s all-in-one installation controller represents a breakthrough in agricultural well irrigation management. The controller integrates microcomputer processing technology, radio frequency triggering technology, high-performance integrated circuit technology and automatic control technology into one compact unit. This innovative system eliminates the need for traditional pump house construction, saving valuable farmland, reducing labor and material costs, while advancing the modernization of agricultural water conservancy management.

Designed for the Field

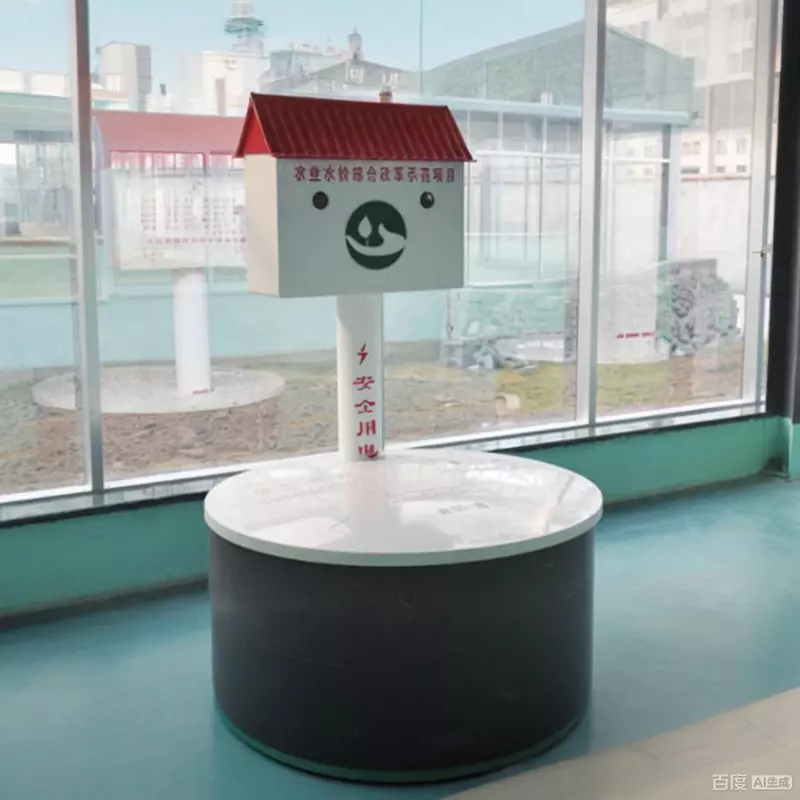

The controller enclosure features an aesthetic birdhouse-shaped design. Installed directly in the field, it blends naturally with the rural landscape and helps protect the internal components from the elements. The housing is made of corrosion-resistant, UV-resistant materials to withstand harsh outdoor conditions. This design eliminates the need for a dedicated pump house, freeing up valuable farmland for cultivation.

Key Features & Benefits:

• All-in-One Integration – Combines RF card reading, pump control, power management and irrigation control in one unit for simplified installation and maintenance.

• RF Card Control – Uses contactless RFID technology (13.56MHz, compliant with ISO/IEC14443A) for convenient tap-and-go operation. Supports prepaid metering and water rights management.

• Wide Operating Range – Reliable performance from -30°C to +70°C, suitable for all climates.

• Built-in Protections – Includes phase loss protection, overload protection, under-voltage and surge protection.

• User-Friendly Interface – Digital keypad with simple operation, suitable for all user levels.

• Precision Metering – Supports pricing down to two decimal places, 8-digit display (up to 999,999.99) for accurate billing.

• Optional Remote Control – Available with 4G wireless transmission unit for remote monitoring and operation via mobile device.

• Secure & Reliable – Village code binding prevents cross-village misuse; data storage capacity of up to 10 years.

Technical Specifications:

• Operating voltage: ~380V ±10% (controller)

• Processor: Industrial-grade CPU with large data storage

• RF card frequency: 13.56MHz; communication rate: 106KBPS

• Sensing distance: ≤15cm

• Load capacity: ≤15KW (with soft-start option for higher loads)

• Display: 8 digits (999,999.99)

• Digital interface: RS-232/RS-485

Application Scenarios:

This system is widely deployed in:

• High-efficiency water-saving irrigation projects

• High-standard farmland construction

• Land consolidation and agricultural development projects

• Grain production base improvement

• High-efficiency ecological agriculture parks

• Small-scale water conservancy key county projects

Proven Success:

• Trusted by over 700,000 water users across more than 4,000 villages

• Deployed in Xinjiang, Inner Mongolia, Henan, Hebei, Hubei, Jiangsu, Northeast China and beyond

• Compliant with China National Standard GB/T 40119-2021 (primary drafter: Shandong Jintian)

Whether you need a standalone controller or a fully integrated irrigation management system, our all-in-one installation controllers offer the durability, reliability and intelligence required for modern agricultural water management.

*23 years of water-saving irrigation innovation – from the pioneers of the enclosure-free irrigation model.*
